Material
|
Size
|
Length
|
Specification
|
Manufacturer
|

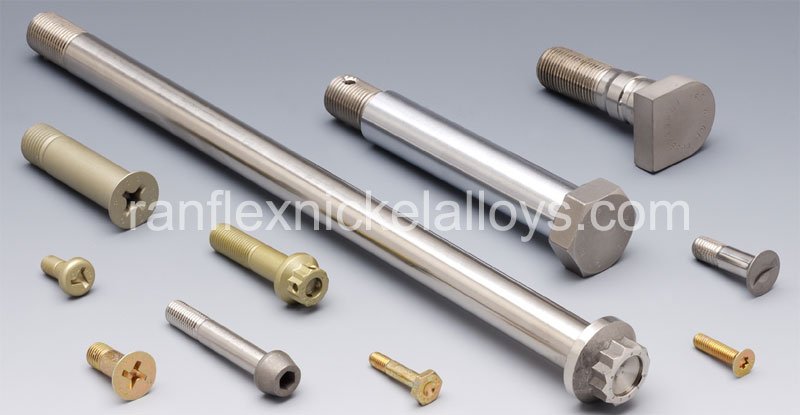

Inconel Fasteners |
M 02 to M 160
|
3 mmto 200 mm |
|
|
Inconel Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
Standard: | DIN 933, DIN 931, ANSI, JIS standards |
Inconel Fasteners In Form of: |
|
Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
Inconel Fasteners Packing: | IN BULK :canton/pallet, Small Boxs/carton/ pallet, or customer request |
Inconel Fasteners Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
Property Class: | For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593HFor Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040For SHCS: F837B, F837C, F837E, F837For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2 |
Inconel Fasteners finishing: | Zinc (yellow, white, blue, black), black oxide,Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: PassivatedSelf-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
Production process | M2-M24: Cold Froging, hot forging M24-M100,machining and CNC for Customized connecting element |
Inconel Fasteners Origin and service-region: | EuropeanOrigin of Inconel 600 Fasteners are Western European. However projects with eastern origin are possible on request. |
Inconel Fasteners Grades: | Inconel 600 Fasteners, Inconel 601 Fasteners, Inconel 625 Fasteners, Inconel 718 Fasteners, Inconel X-750 Fasteners |
Surface Coating: |
|
Our Fastener plant is equipped with various testing facilities like Tensile Testing Machine also known as tension testing. We also conduct other tests like Hardness Test, IGC Test, Positive Material Identification Test to ensure that all the product going out of our manufacturing plant are the best in terms of quality.
Alloy
|
Common Name
|
Related Specification
|
|||
British
|
European
|
ASTM
|
UNS
|
||
Alloy 600 Fasteners
|
Inconel 600 ®
|
BS 3076 NA 14
|
2.4816
|
B166
|
N06600
|
Alloy 601 Fasteners
|
Inconel 601 ®
|
2.4627
|
B166
|
N06601
|
|
Alloy 625 Fasteners
|
Inconel 625 ®
|
BS 3076 NA 21
|
2.4856
|
B446
|
N06625
|
Alloy 718 Fasteners
|
Inconel 718 ®
|
1.4668
|
B637
|
N07718
|
|
Alloy 750 Fasteners
|
Inconel 750 ®
|
2.4669
|
B637
|
N07750
|
|
Alloy 400 Fasteners
|
Monel 400 ®
|
BS 3076 NA13
|
2.4360
|
F467
|
N04400
|
Alloy K500 Fasteners
|
Monel K500 ®
|
BS 3076 NA18
|
4.4375
|
B865-04
|
N05500
|
Alloy C276 Fasteners
|
Hastelloy C276 ®
|
2.4819
|
B574
|
N10276
|
|
Alloy 22 Fasteners
|
Hastelloy C22 ®
|
2.4602
|
B574
|
N06022
|
|
Alloy B2 Fasteners
|
Hastelloy B2 ®
|
B335
|
N10665
|
||
Alloy X Fasteners
|
Hastelloy X ®
|
2.4655
|
B572
|
N06002
|
|
Alloy B3 Fasteners
|
Hastelloy B3 ®
|
2.4600
|
B335
|
N10675
|
|
Alloy G30 Fasteners
|
Hastelloy G30 ®
|
2.4603
|
B581
|
N06030
|
|
Alloy 50 Fasteners
|
Nitronic 50 ®
|
A479 XM-19
|
S20910
|
||
Alloy 60 Fasteners
|
Nitronic 60 ®
|
A193 B8S
|
S21800
|
||
Alloy 75 Fasteners
|
Nimonic 75 ®
|
2.4951
|
B637
|
N06075
|
|
Alloy 80A Fasteners
|
Nimonic 80A ®
|
BS 4882 NA20
|
2.4952
|
B637
|
N07080
|
Alloy 90 Fasteners
|
Nimonic 90 ®
|
B408
|
N07090
|
||
Alloy 800 Fasteners
|
Incoloy 800 ®
|
BS 3076 NA15
|
1.4876
|
B408
|
N08800
|
Alloy 800H Fasteners
|
Incoloy 800H ®
|
B408
|
|||
Alloy 800 HT Fasteners
|
Incoloy 800HT ®
|
1.4959
|
B408
|
N08811
|
|
Alloy 825 Fasteners
|
Incoloy 825 ®
|
BS 3076 NA16
|
2.4858
|
B425
|
N08825
|
Alloy 925 Fasteners
|
Incoloy 925 ®
|
B805
|
N09925
|
||
Alloy DS Fasteners
|
Incoloy DS ®
|
BS 3076 NA17
|
1.4862
|
N08330
|
Hexagon Bolts / Set Screws
|
Stud Bolts
|
Hexagon Nuts
|
Socket Cap screws
|
---|---|---|---|
DIN 931
|
BS4882
|
DIN 934
|
DIN 912
|
DIN 933
|
DIN 976
|
BS 1768
|
DIN 6912
|
BS 1768
|
BS 1769
|
DIN 7984
|
|
UNI 5731
|
BS 1083
|
ANSI B18.3
|
|
UNI 5739
|
BS 3692
|
ISO 4762
|
|
ISO 4014
|
ISO 4032
|
UNI 5931
|
|
ISO 4017
|
ISO 4033
|
BS 2470
|
|
BS 1769
|
ANSI B18.2.2
|
BS 4168
|
|
BS 3692
|
|||
ANSI B18.2.1
|
Socket & Slotted Set Screws
|
Socket & Slotted Countersunk Screws
|
Studs
|
Washers
|
---|---|---|---|
DIN 913
|
DIN 963
|
DIN 938
|
DIN 125
|
DIN 914
|
DIN 7991
|
DIN 939
|
DIN 9021
|
DIN 915
|
BS 4168
|
DIN 2510
|
BS 4320
|
DIN 916
|
BS 1981
|
BS 4439
|
BS 3410
|
DIN 551
|
BS 483
|
BS 2693
|
|
DIN 553
|
BS 2470
|
Spring Washers
|
|
DIN 438
|
DIN 127
|
||
BS 4168
|
BS 4464
|
||
BS 1802
|
ASTM A193 Grade B5, ASTM A193 Grade B6, ASTM A193 Grade B7, ASTM A193 Grade B16, ASTM A193 Grade B8, ASTM A193 Grade B8C, ASTM A193 Grade B8M, ASTM A193 Grade B8T, ASTM A193 Grade B8, ASTM A193 Grade B8C, ASTM A193 Grade B8M, ASTM A193 Grade B8T, ASTM A320 Grade L7, ASTM A320 Grade L7A, ASTM A320 Grade L7B, ASTM A320 Grade LC7, ASTM A320 Grade L43, ASTM A320 Grade B8, ASTM A320 Grade B8C, ASTM A320 Grade B8T, ASTM A320 Grade B8F, ASTM A320 Grade B8M, ASTM A320 Grade B8, ASTM A320 Grade B8C, ASTM A320 Grade B8F, ASTM A320 Grade B8M, ASTM A320 Grade B8T, SAE J429 Grade 5, ASTM A449, SAE J429 Grade 5.1, SAE J429 Grade 5.2, ASTM A325 Type 1, ASTM A325 Type 2, ASTM A325 Type 3, ASTM A354 Grade BB, ASTM A354 Grade BC, SAE J429 Grade 7, SAE J429 Grade 8, ASTM A354 Grade BD, SAE J429 Grade 8.1, ASTM A490 |
|
Grade Designation Of Inconel Fasteners
STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | OR |
Inconel / Incoloy | 2.4816 | N06600 | NCF 600 | NC15FE11M | NA 13 | МНЖМц 28-2,5-1,5 | NiCr15Fe | ЭИ868 |
Inconel 600 | Ni | Fe | C | Mn | Si | Cu | Cr | S |
72.0 min | 6.0 – 10.0 | 0.15 max | 1.0 max | 0.5 max | 0.5 max | 14.0 – 17.0 | 0.015 max | |
Inconel 601 | 58.0 – 63.0 | Balance | 0.10 max | 1.0 max | 0.5 max | 1.0 max | 21.0 – 25.0 | 0.015 max |
Inconel 625 | Ni | Fe | C | Mn | Si | Cr2 | Mo | Co | Al | Ti | Nb + Ta | P | S |
58.0 min | 5.0 max | 0.10 max | 0.50 max | 0.50 max | 20.0-23.0 | 8.0-10.0 | 1.0 max | 0.40 max | 0.40 max | 3.15–4.15 | 0.015 max | 0.015 ma |
Inconel 600 | Inconel 601 | Inconel 625 | |
Density | 8.47 g/cm3 | 8.1 g/cm3 | 8.4 g/cm3 |
Melting Point | 1413 °C (2580 °F) | 1411 °C (2571 °F) | 1350 °C (2460 °F) |
Tensile Strength | Psi – 95,000 , MPa – 655 | Psi – 80,000 , MPa – 550 | Psi – 1,35,000 , MPa – 930 |
Yield Strength (0.2%Offset) | Psi – 45,000 , MPa – 310 | Psi – 30,000 , MPa – 205 | Psi – 75,000 , MPa – 517 |
Elongation | 40 % | 30 % | 42.5 % |
Inconel 600 Fasteners
A nickel-chromium alloy with good carburization and oxidation resistance through 2000°F. The alloy has long been used in the heat treating industry and Inconel 600 has useful resistance to dry Cl2 and HCl gases at moderately elevated temperatures.
Inconel 601 Fasteners
Inconel 601 is highly resistant to oxidation through 2200°F even under severe thermal cycling. The alloy has good high temperature strength, and retains its ductility after long service exposure. Inconel 601 alloy has good hot corrosion resistance under oxidizing conditions
Inconel 625 Fasteners
Inconel 625 is the workhorse of the Inconel family and is one of the most common grades for fasteners. It exhibits high creep-rupture strength and is oxidation resistant to 1800°F (982°C). Inconel 625 has excellent resistance to hot seawater, scrubber environments and reducing acids and this alloy resists a wide range of severely corrosive environments and is especially resistant to pitting and crevice corrosion
Inconel 686 Fasteners
An alloy designed for outstanding corrosion resistance in a wide range of severe environments. The alloy is used in the most severe environments encountered in chemical processing, pollution control, pulp and paper production, and treatment of industrial and municipal waste.
Inconel 718 Fasteners
Inconel 718 is the most common grade of the hardenable Inconels. This precipitation-hardened nickel-chromium alloy combines outstanding corrosion resistance and high strength at elevated temperatures. The alloy is a about 2x as strong as Inconel 625 having excellent creep-rupture strength at temperatures to 1300°F (700°C) and usable up to 1800°F (982°C). Inconel 718 is often used in gas turbines, rocket motors, spacecraft, nuclear reactors, pumps, and tooling.
Inconel 725 Fasteners
A nickel-chromium-molybdenum-niobium age-hardenable alloy that has essentially the same corrosion resistance as Inconel 625, but with a strength of that is twice that of annealed Inconel 625. The strength of this alloy is developed by heat treatment to achieve high ductility and toughness. The alloy is resistant to hydrogen embrittlement and stress-corrosion cracking as well.
In generally, If you have no special requirement, we will use the mass packing (bag carbon tray). If you want to do the special packing, please advise us the specific details, pictures or design. Shipping In generally, our customer often request to delivery by express, plane or sea. Any other better way will be also accepted well. |
|
