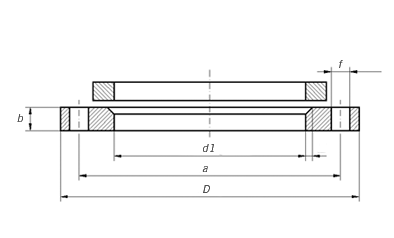

Norma DIN 2642 PN10 - plate flange Suppliers Exporters Stockist India :



Pipe			Flange					Screws			Weight of a flange (7,85 Kg/dm3)
Rated Diameter	d1		D	d6	b	k	e	Number	Thread	d2	Kg
	ISO Series 1	DIN Series 2
15	-	20	95	22	14	65	3	4	M 12	14	0,689
	21,3	-		24
20	-	25	105	28	14	75	3	4	M 12	14	0,806
	26,9	-		30
25	-	30	115	33	16	85	4	4	M 12	14	1,11
	33,7	-		36
32	-	38	140	42	16	100	4	4	M 16	18	1,64
	42,4	-		46
40	-	44,5	150	50	16	110	4	4	M 16	18	1,86
	48,3	-		54
50	-	57	165	62	16	125	5	4	M 16	18	2,2
	60,3	-		65
65	76,1	-	185	81	16	145	5	4	M 16	18	2,62
80	88,9	-	200	94	18	160	5	8	M 16	18	3,32
100	-	108	220	113	18	180	5	8	M 16	18	3,67
	114,3	-		119
125	-	133	250	138	18	210	5	8	M 16	18	4,54
	139,7	-		145
150	-	159	285	164	18	240	5	8	M 20	22	5,6
	168,3	-		173
200	219,1	-	340	225	20	295	5	8	M 20	22	7,46
250	-	267	395	273	22	350	5	12	M 20	22	10,3
	273	-		279
300	323,9	-	445	329	26	400	5	12	M 20	22	14
350	355,6	-	505	362	28	460	6	16	M 20	22	18,5
	-	368		374
400	406,4	-	565	413	32	515	6	16	M 24	26	25
	-	419		426
(450)	457	-	615	467	38	565	6	20	M 24	26	30,6
500	508	-	670	517	38	620	6	20	M 24	26	37
600	610	-	780	618	44	725	7	20	M 27	30	56,3
700	711	-	895	721	50	840	7	24	M 27	30	80,4
800	813	-	1015	824	56	950	7	24	M 30	33	113,2

Carbon Steel Flanges Specifications :

Size	:	½" TO 54"
Pressure Rating	:	150#, 300#, 600#, 900#, 1500#, 2500#
Standards	:	ASME B 16.5, ASME B 16.47, API 6A
Type	:	SORF, WNRF, SWRF, BLRF, Threaded etc.
Specials	:	Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc.

Material of Construction	Standards	Grades
Carbon Steel Flanges		ASTM A105, A-350 LF2 SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, ASTM A 105/ A350 LF3 / A350 LF2 / A350 LF1 Astm A694 F42 Flanges / Astm A694 F46 Flanges / Astm A694 F52 Flanges / Astm A694 F56 Flanges / Astm A694 F60 Flanges / Astm A694 F65 Flanges / Astm A694 F70 Flange
Low Temperature Carbon Steel Flanges	ASTM A350	ASTM A350 Flange ASTM A350 LF2 Flange, ASTM A350 LF3 Flange
