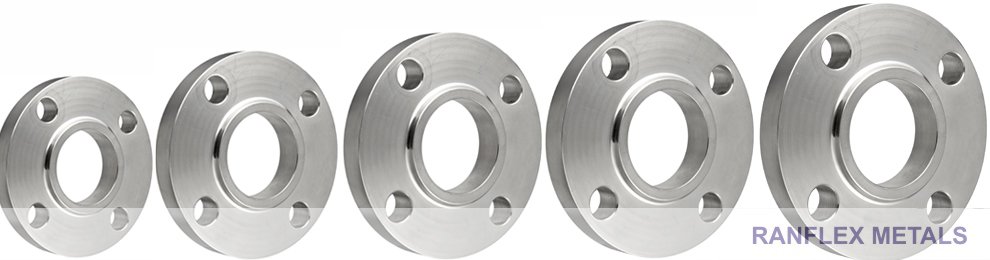

ASME/ANSI B16.5 LAP JOINT PIPE FLANGES MANUFACTURER IN INDIA, MANUFACTURER/EXPORTER OF HIGH QUALITY LAP JOINT (LJ) FORGED FLANGES, CARBON, ALLOY, STAINLESS STEEL LAP JOINT FLANGES
Size: 1/2″ (15 NB) to 48″ (1200NB)
Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Lap Joint Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Lap Joint Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Lap Joint Flanges: ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Lap Joint Flanges: Duplex, Super Duplex, Nickel Alloys
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services: CNC Machining, Customised Flanges
Marking & Packing
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
Quality Assurance
At Ranflex Metals, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates: Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India / Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India / Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India
Lap Joint Flanges Specification
Standard: ANSI, ASME, ASA B16.5
Model: Threaded Screwed Flange, NPT Flange
Size: 1/2” - 24”
Material: ASTM A105, CARBON STEEL, High Nickel Alloys
Supply Ability: 3000Ton/Month
Process: Forged, Forging
Packing: Plywood Pallets
Payment Terms: T/T, L/C, D/P
Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India / Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India / Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India
The tables below show the most common sizes but are not exhaustive.
150 Lbs
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore | Dia. (D) |
Thick. (E) |
Dia. (B) |
Dia. (A) |
Height (H) |
Nbr | Holes | Dia. (C) |
| 1/2" | 90 | 11.2 | 30 | 22.9 | 16 | 4 | 15.87 | 60.3 |
| 3/4" | 100 | 12.7 | 38 | 28.2 | 16 | 4 | 15.87 | 69.9 |
| 1" | 110 | 14.3 | 49 | 34.9 | 17 | 4 | 15.87 | 79.4 |
| 1 1/4" | 115 | 15.9 | 59 | 43.7 | 21 | 4 | 15.87 | 88.9 |
| 1 1/2" | 125 | 17.5 | 65 | 50.0 | 22 | 4 | 15.87 | 98.4 |
| 2" | 150 | 20.7 | 78 | 62.5 | 25 | 4 | 19.05 | 120.7 |
| 2 1/2" | 180 | 22.3 | 90 | 75.4 | 29 | 4 | 19.05 | 139.7 |
| 3" | 190 | 23.9 | 108 | 91.4 | 30 | 4 | 19.05 | 152.4 |
| 3 1/2" | 215 | 23.9 | 122 | 104.1 | 32 | 8 | 19.05 | 177.8 |
| 4" | 230 | 23.9 | 135 | 116.8 | 33 | 8 | 19.05 | 190.5 |
| 5" | 255 | 23.9 | 164 | 144.4 | 36 | 8 | 22.22 | 215.9 |
| 6" | 280 | 25.4 | 192 | 171.4 | 40 | 8 | 22.22 | 241.3 |
| 8" | 345 | 28.6 | 246 | 222.2 | 44 | 8 | 22.22 | 298.5 |
| 10" | 405 | 30.2 | 305 | 277.4 | 49 | 12 | 25.40 | 362.0 |
| 12" | 485 | 31.8 | 365 | 328.2 | 56 | 12 | 25.40 | 431.8 |
| 14" | 535 | 35.0 | 400 | 360.2 | 79 | 12 | 28.57 | 476.3 |
| 16" | 595 | 36.6 | 457 | 411.2 | 87 | 16 | 28.57 | 539.8 |
| 18" | 635 | 39.7 | 505 | 462.3 | 97 | 16 | 31.75 | 577.9 |
| 20" | 700 | 42.9 | 559 | 514.4 | 103 | 20 | 31.75 | 635.0 |
| 24" | 815 | 47.7 | 663 | 616.0 | 111 | 20 | 34.92 | 749.3 |
The dimensions are in millimeters
Source : ASME B16.5 - 2007
300 Lbs
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore | Dia. (D) |
Thick. (E) |
Dia. (B) |
Dia. (A) |
Height (H) |
Nbr | Holes | Dia. (C) |
| 1/2" | 95 | 14.3 | 38 | 22.9 | 22 | 4 | 15.87 | 66.7 |
| 3/4" | 115 | 15.9 | 48 | 28.2 | 25 | 4 | 19.05 | 82.6 |
| 1" | 125 | 17.5 | 54 | 34.9 | 27 | 4 | 19.05 | 88.9 |
| 1 1/4" | 135 | 19.1 | 64 | 43.7 | 27 | 4 | 19.05 | 98.4 |
| 1 1/2" | 155 | 20.7 | 70 | 50.0 | 30 | 4 | 22.22 | 114.3 |
| 2" | 165 | 22.3 | 84 | 62.5 | 33 | 8 | 19.05 | 127.0 |
| 2 1/2" | 190 | 25.4 | 100 | 75.4 | 38 | 8 | 22.22 | 149.2 |
| 3" | 210 | 28.6 | 117 | 91.4 | 43 | 8 | 22.22 | 168.3 |
| 3 1/2" | 230 | 30.2 | 133 | 104.1 | 44 | 8 | 22.22 | 184.2 |
| 4" | 255 | 31.8 | 146 | 116.8 | 48 | 8 | 22.22 | 200.0 |
| 5" | 280 | 35.0 | 178 | 144.4 | 51 | 8 | 22.22 | 235.0 |
| 6" | 320 | 36.6 | 206 | 171.4 | 52 | 12 | 22.22 | 269.9 |
| 8" | 380 | 41.3 | 260 | 222.2 | 62 | 12 | 25.40 | 330.2 |
| 10" | 445 | 47.7 | 321 | 277.4 | 95 | 16 | 28.57 | 387.4 |
| 12" | 520 | 50.8 | 375 | 328.2 | 102 | 16 | 31.75 | 450.8 |
| 14" | 585 | 54.0 | 425 | 360.2 | 111 | 20 | 31.75 | 514.4 |
| 16" | 650 | 57.2 | 483 | 411.2 | 121 | 20 | 34.29 | 571.5 |
| 18" | 710 | 60.4 | 533 | 462.3 | 130 | 24 | 34.29 | 628.6 |
| 20" | 775 | 63.5 | 587 | 514.4 | 140 | 24 | 34.29 | 685.8 |
| 24" | 915 | 69.9 | 702 | 616.0 | 152 | 24 | 41.27 | 812.8 |
The dimensions are in millimeters
Source : ASME B16.5 - 2007
600 Lbs
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore | Dia. (D) |
Thick. (E) |
Dia. (B) |
Dia. (A) |
Height (H) |
Nbr | Holes | Dia. (C) |
| 1/2" | 95 | 14.3 | 38 | 23.6 | 22 | 4 | 15.87 | 66.7 |
| 3/4" | 115 | 15.9 | 48 | 29.0 | 25 | 4 | 19.05 | 82.6 |
| 1" | 125 | 17.5 | 54 | 35.8 | 27 | 4 | 19.05 | 88.9 |
| 1 1/4" | 135 | 20.7 | 64 | 44.4 | 29 | 4 | 19.05 | 98.4 |
| 1 1/2" | 155 | 22.3 | 70 | 50.6 | 32 | 4 | 22.22 | 114.3 |
| 2" | 165 | 25.4 | 84 | 63.5 | 37 | 8 | 19.05 | 127.0 |
| 2 1/2" | 190 | 28.6 | 100 | 76.2 | 41 | 8 | 22.22 | 149.2 |
| 3" | 210 | 31.8 | 117 | 92.2 | 46 | 8 | 22.22 | 168.3 |
| 3 1/2" | 230 | 35.0 | 133 | 104.9 | 49 | 8 | 25.40 | 184.2 |
| 4" | 275 | 38.1 | 152 | 117.6 | 54 | 8 | 25.40 | 215.9 |
| 5" | 330 | 44.5 | 189 | 144.4 | 60 | 8 | 28.57 | 266.7 |
| 6" | 355 | 47.7 | 222 | 171.4 | 67 | 12 | 28.57 | 292.1 |
| 8" | 420 | 55.6 | 273 | 222.2 | 76 | 12 | 31.75 | 349.2 |
| 10" | 510 | 63.5 | 343 | 276.2 | 111 | 16 | 34.92 | 431.8 |
| 12" | 560 | 66.7 | 400 | 328.6 | 117 | 20 | 34.92 | 489.0 |
| 14" | 605 | 69.9 | 432 | 360.4 | 127 | 20 | 38.10 | 527.0 |
| 16" | 685 | 76.2 | 495 | 411.2 | 140 | 20 | 41.27 | 603.2 |
| 18" | 745 | 82.6 | 546 | 462.0 | 152 | 20 | 44.45 | 6654.0 |
| 20" | 815 | 88.9 | 610 | 512.8 | 165 | 24 | 44.45 | 723.9 |
| 24" | 940 | 101.6 | 718 | 614.4 | 184 | 24 | 50.80 | 838.2 |
The dimensions are in millimeters
Source : ASME B16.5 - 2007
Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India / Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India / Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India
ALLOY GRADES
| ALLOY | Forging/ Flanges / Forged Fittings |
|---|---|
| Hastelloy B-2 / B-3 | ASTM B564 |
| Hastelloy C-276 | ASTM B564 |
| Hastelloy C-4 | ASTM B564 |
| Hastelloy C-22 | ASTM B564 |
| Hastelloy C-2000 | ASTM B564 |
| Hastelloy G-3 | ASTM B564 |
| Hastelloy G-30 | ASTM B564 |
| Hastelloy X | ASTM B564 |
| INCONEL 600 | ASTM B564 |
| INCONEL 601 | ASTM B564 |
| INCONEL 617 | |
| INCONEL 625 | ASTM B446 |
| INCONEL 690 | |
| INCONEL 718 | ASTM B637 |
| INCONEL X-750 | ASTM B637 |
| INCOLOY 800 | ASTM B564 |
| INCOLOY 800H | ASTM B564 |
| INCOLOY 800HT | ASTM B564 |
| INCOLOY 825 | |
| MONEL 400 | ASTM B564 |
| MONEL K-500 | |
| NICKEL 200 | |
| NICKEL 201 | |
| ALLOY 20 | ASTM B462 |
| TITANIUM | ASTM B381 |
| ZIRCONIUM | ASTM B493 |
| TANTALUM | |
| Cu-Ni 70/30 | |
| Cu-Ni 90/10 | |
| DUPLEX 2205 | A182F51 |
| 904 L |
Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India / Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India / Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India
 |
 |
 |
 |
 |
Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India / Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India / Ranflex Metals Lap Joint Flanges Stockist / Stainless Steel ASTM A182 Lap Joint Flanges Distributors / Carbon Steel Lap Joint Flanges Dealers / ASTM A105/A105N Flanges / WPHY Lap Joint Flanges Suppliers / A350 LF1 / LF2 Flanges Manufacturers India
Lap Joint Flanges Price List (At Factory Prices)
ASME Weld Neck Flanges
US $1500-1600 / Ton ( FOB Price)
Forged Slip Blind Flanges
US $1000-2000 / Ton ( FOB Price)
Slip On Flanges
US $900-2000 / Ton ( FOB Price)
Socket Welding Flanges
US $3-8 / Kilogram ( FOB Price)
Lap Joint Flanges
US $3-8 / Kilogram ( FOB Price)
Threaded Forged Flange JIS Q235 A105
US $1-100 / Piece ( FOB Price)
Forged Slip On Reducing Flanges
US $1000-2000 / Ton ( FOB Price)
Weld Neck Reducing Flanges
US $1-1.5 / Kilogram ( FOB Price)
DN15-DN 600 Orifice Flanges
US $1100-1400 / Metric Ton ( FOB Price)
ASME ANSI B16.36 Threaded Orifice Flanges
US $1-10 / Piece ( FOB Price)
Square Flanges
US $1-500 / Piece ( FOB Price)
High Hub Blinds Flanges
US $1-100000 / Piece ( FOB Price)
